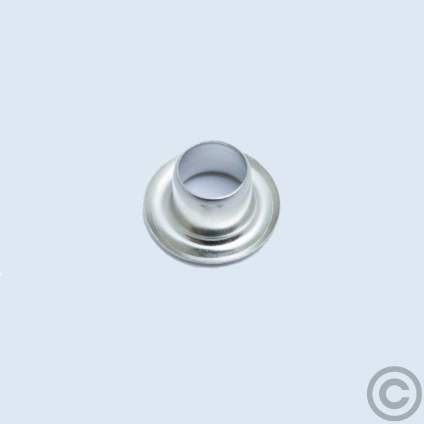

Öljetter/Sko Öljetter/Sko Öljett Riven Mässing Förnicklad Shoe Eyelet Spliced Brass Nickelplated 10 M20.jpg

10

A (outer Ø): 11.8mm
B (neck height): 6.2mm
C (inner Ø): 4.5mm
Kgs/1000: 0,538kg


Pack size: 500/1000pcs
Machine closing tool: 10 MV
Recommended hollowpunch: 4440-6 Ø=6mm
Base Material: Brass
Standard Finishes: Polished brass, black oxy, nickel plated.
Other finishes available on request, MOQ will apply.

Suitable applications:
A small eyelet, commonly used in clothing and leather products for reinforcement.
Similar to the 7 A eyelet, but with the function that substitutes the need of a washer.

Assembly:
The eyelets are assembled with a hand closing tool and a deadblow mallet, pliers or in a machinepress.
Test the tools and eyelets to before final application to understand how they work.
When using a hand closing tool, make sure the punch and die are aligned and held straight. Gently start punching down with the mallet, gradually
letting the neck of the eyelet roll down.
